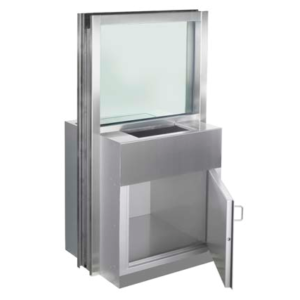

Model 7520

Safety and Features

• Complete unit with open flat tray and pass-trough Model 20, for handing over flat objects up to 30 mm high, such as passes, receipts and ID cards, and with deep tray for handing over larger objects or folders up to 100 mm high.
• Model 20 spät can also be used if the counter is in cold draughty areas (flat slider instead of tray).
• Integrated Public 3 intercom for automatic two-way con- versation (with optional headset).
• Case hatch Model 105 with alternately opening sliding doors, operated electromechanically via contral panel. Safety activation ensures only one door can be opened at a time. Mechanism can not be manipulated.
• Offers firearm protection, capable of withstanding heavy handgun fire. Models featuring pass-through Model 20, Model 20 spät and case hatch Model 100 have received FB4 certification from the firearms licensing authority.
• Model 7520 fulfils German UVV regulations.

Materials and Use

• Safety glass adhering to BR4 NS.
• Carriage and through made out of 3 mm thick stainless steel with a black-brown powder coating.
• Counter element made out of brushed stainless steel.
• Case hatch made out of 3 mm steel, lined with stainless steel.
• All metal parts have been produced using state-of-the-art precision laser cutting technology for ultimate quality.
• Model 7520 is suitable for use in indoor areas, and Model 7520 spät is also suitable for use in covered outdoor areas.
• The unit requires no maintenance. No need for cleaning or lubrication.

Installation and Dimensions

The unit comes complete with power cables and is ready for exact mounting in prepared wall sections. It is inserted into the recess from the outside to fit flush with the wall. This is done by removing the inner frame before screwing the unit into place from the inside to prevent tampering. Consideration must be given to access requirements and the possible need to remove the unit later in the unlikely event of repairs. There should be a 230 V socket near the counter on the inner side.

Miscellaneous

• Combines with all other Wurster pass-throughs, such as Model 20 spät, the ideal counter unit for late or night shifts.
• Also available as Model 7620 with money trolley hatch Model 106.
• Available with fire protection up toF 90.
• Special sizes available on request.
• Other firearm categories available on request.
• Frame coatings available inalternative RAL colours on request.
