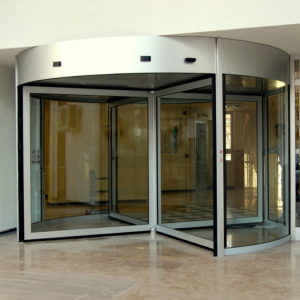

Automatic revolving door ED100
Automatic revolving door ED100 can be customized to your project! You will let us know, which dimensions will be needed for your building. You can choose finish of your product and also we offer wide range of optional equipment.
Revolving door is fully automatic, on the entrances and exits there is radar. Safety system for people are installed to every model. Usually we use 4+4 mm laminated curved glass and aluminium profiles.
Features
Standard:
- Automatic system
- Emergency stop button – exit + entry
- Disabled access button – exit + entry
- Manual usage function
- Radar on exit and entry side
- Anti-handjamming edge – each entry
- Curved and wing glasses 4+4mm laminated
- Manual lock
- Roof – MDF indoor, aluminium outdoor
- Mechanism – Quality bearing systems
- Horse hair brushes 40 mm
- Ceiling – 12 pcs. of 1,5mm thick aluminium sheets
- Colour – natural anodized or RAL colours
- Lighting – 4 pcs. 5W LED downlight
- Control Panel with position switch
Options
Optional features:
- Mirror stainless steel cladding
- Doormat
- Door handle
- Colored glass
- Water insulation for outdoor
- Horizontal safety heel sensor (bottom) and motion sensor (top)
- Passage height in different dimensions
- Air curtain
- Extra LED lights
- Canopy height in different dimensions
- Night security shield
- Break-out leaves
- Canopy heating unit
- Touchscreen control panel
- Presence sensors
- Test and fault detection modes (touchscreen panel)
- Setting of speed control and waiting time periods (touchscreen panel)
- Speed control (touchscreen panel)
